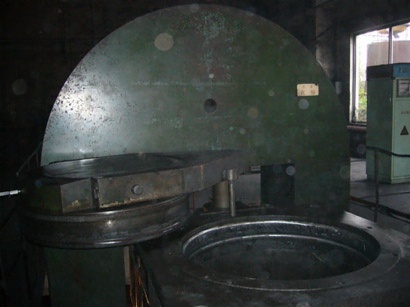

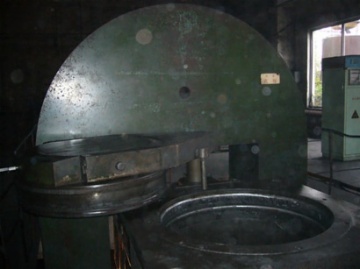

cold isostatic pressing process 1000/3000-200

Item Code:1000/3000-200 Features:
  • Description

Diameter of Pressure Vessel: 1000  mm


Depth of Pressure Vessel: 3000  mm

Maximum Isostatic Pressure: 200   Mpa

1. The vessel inner materials is 34CrNi3MoV alloy whole parts forged and then The forged vessel be wire wounded by alloy of wire(65Mn steel 1.5mm x 6mm size) as per the designed.
2.Whole procedure of the cold isostatic pressing (CIP) machine, increasing, holding and
releasing pressure is controlled by PLC and also there is a pressure decompression system to protect the system over pressure to keep the machine in safety running.
3. The pressuring system is Hydraulic System. The hydraulic oil is anti-abraded oil, HM-32 for the hydraulic system. And in the vessel, the liquid is chloridized water to proof-rusting and corrosive.
4. We will supply one set of spare parts together with the machine free of charges.

"SUOHAIPU” is the professional manufacturer and supplier of cold isostatic press machine,Isostatic press machine,CIP equipment ;excellent quality and favorable price!
