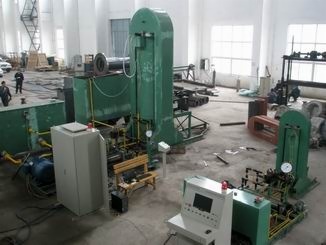

cold isostatic press machine 710/3000-160

Item Code:710/3000-160 Features:
  • Description

Diameter of Pressure Vessel:  710  mm

Depth of Pressure Vessel:  3000  mm

Maximum Isostatic Pressure:  160   Mpa

1. The vessel inner materials is 34CrNi3MoV alloy whole parts forged and then The forged vessel be wire wounded by alloy of wire(65Mn steel 1.5mm x 6mm size) as per the designed.
2. Whole procedure of the cold isostatic pressing (Cold Isostatic Press), increasing, holding and
releasing pressure is controlled by PLC and also there is a pressure decompression system to protect the system over pressure to keep the machine in safety running.
3. The pressuring system is Hydraulic System. The hydraulic oil is anti-abraded oil, HM-32 for the hydraulic system. And in the vessel, the liquid is chloridized water to proof-rusting and corrosive.
4.We would like to replace any defected parts within one year. One year later, spare parts would be also supplied by the us but the charges to be on the buyer’s account.

 "SUOHAIPU"is a leading manufacturer dedicated to research, development and manufacturing of cold isostatic pressing equipment, famous with high- efficient R&D and technical breakthrough.
  We offer comprehensive service for global clients before and after sales.Our technical support before sales includes test pressings at our plant, technical evaluation and preliminary product design based on customer specific demand. If necessary, we would like to send our technicians to the client’s plant to guide theinstallation and training the workers for operation the machine.
