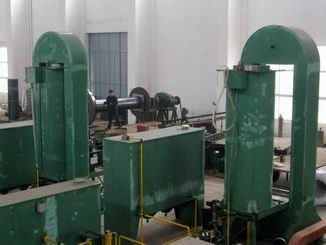

CIP process 500/2500-180

Item Code:500/2500-180 Features:
  • Description

Diameter of Pressure Vessel: 500  mm

Depth of Pressure Vessel:  2500  mm

Maximum Isostatic Pressure:  180  Mpa
1. The vessel inner materials is 34CrNi3MoV alloy whole parts forged and then The forged vessel be wire wounded by alloy of wire(65Mn steel 1.5mm x 6mm size) as per the designed.
2. Whole procedure of the cold isostatic pressing (CIP equipment ), increasing, holding and
releasing pressure is controlled by PLC and also there is a pressure decompression system to protect the system over pressure to keep the machine in safety running.
3. The pressuring system is Hydraulic System. The hydraulic oil is anti-abraded oil, HM-32 for the hydraulic system. And in the vessel, the liquid is chloridized water to proof-rusting and corrosive.
4.We would like to replace any defected parts within one year. One year later, spare parts would be also supplied by the us but the charges to be on the buyer’s account.

 "SUOHAIPU"is a leading manufacturer dedicated to research, development and manufacturing of cold isostatic press machine, famous with high- efficient R&D and technical breakthrough.
  We Possessing the production ability of large machinery, our corporation have the large machinery equipment, such as 5m standing lathe,2x10m recumbent lathe, and 2.5x6.5 digital controlling Longmen milling etc. Making use of the advanced steel twisting technology , the stability and life time of cold isostatic pressing would be assured.
